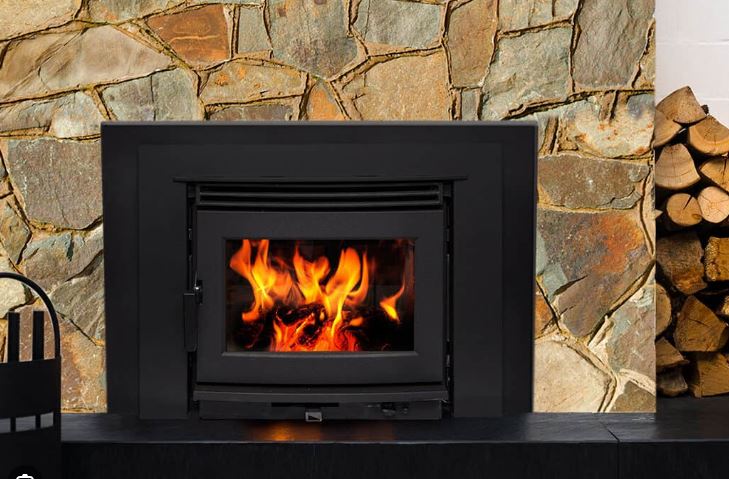

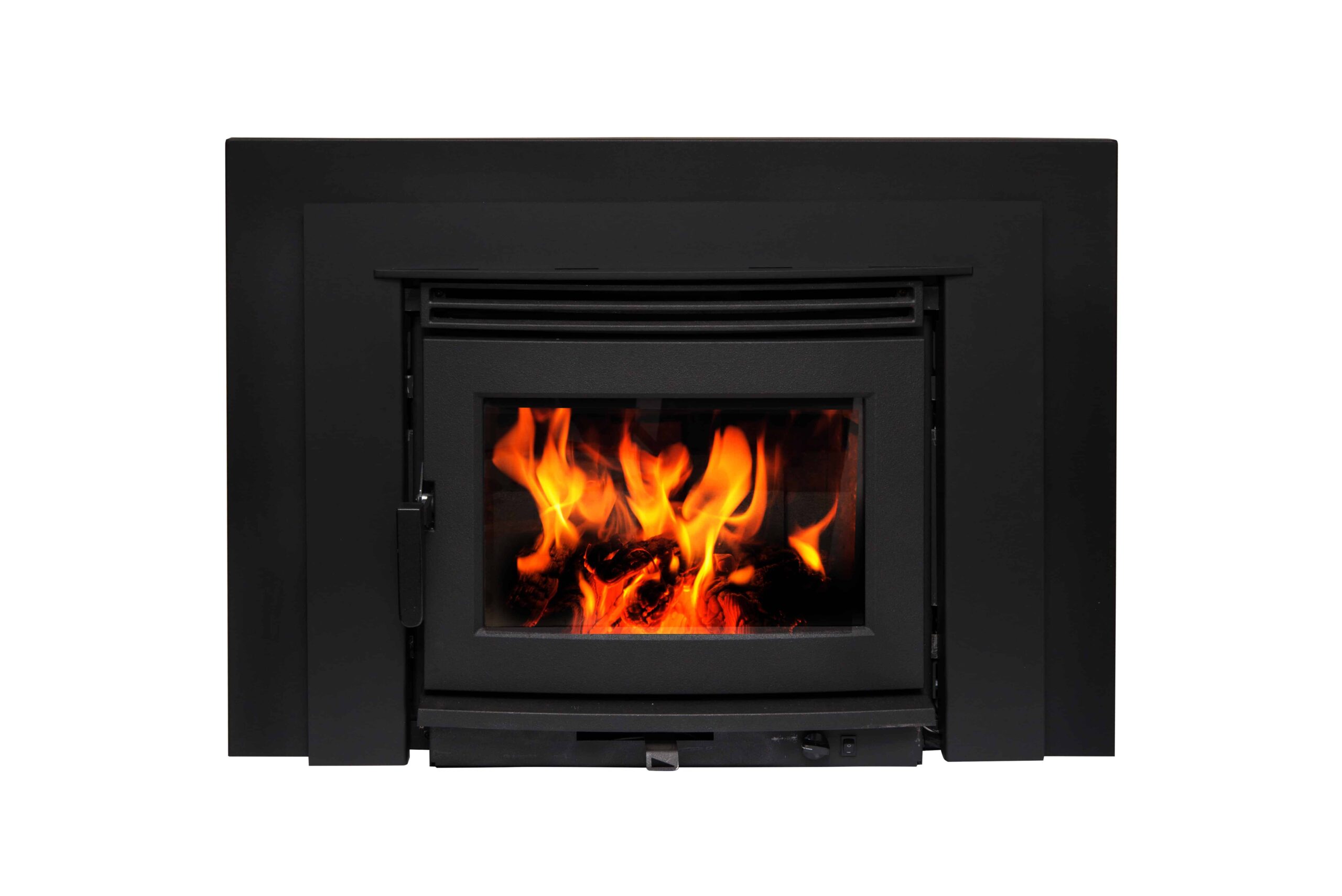

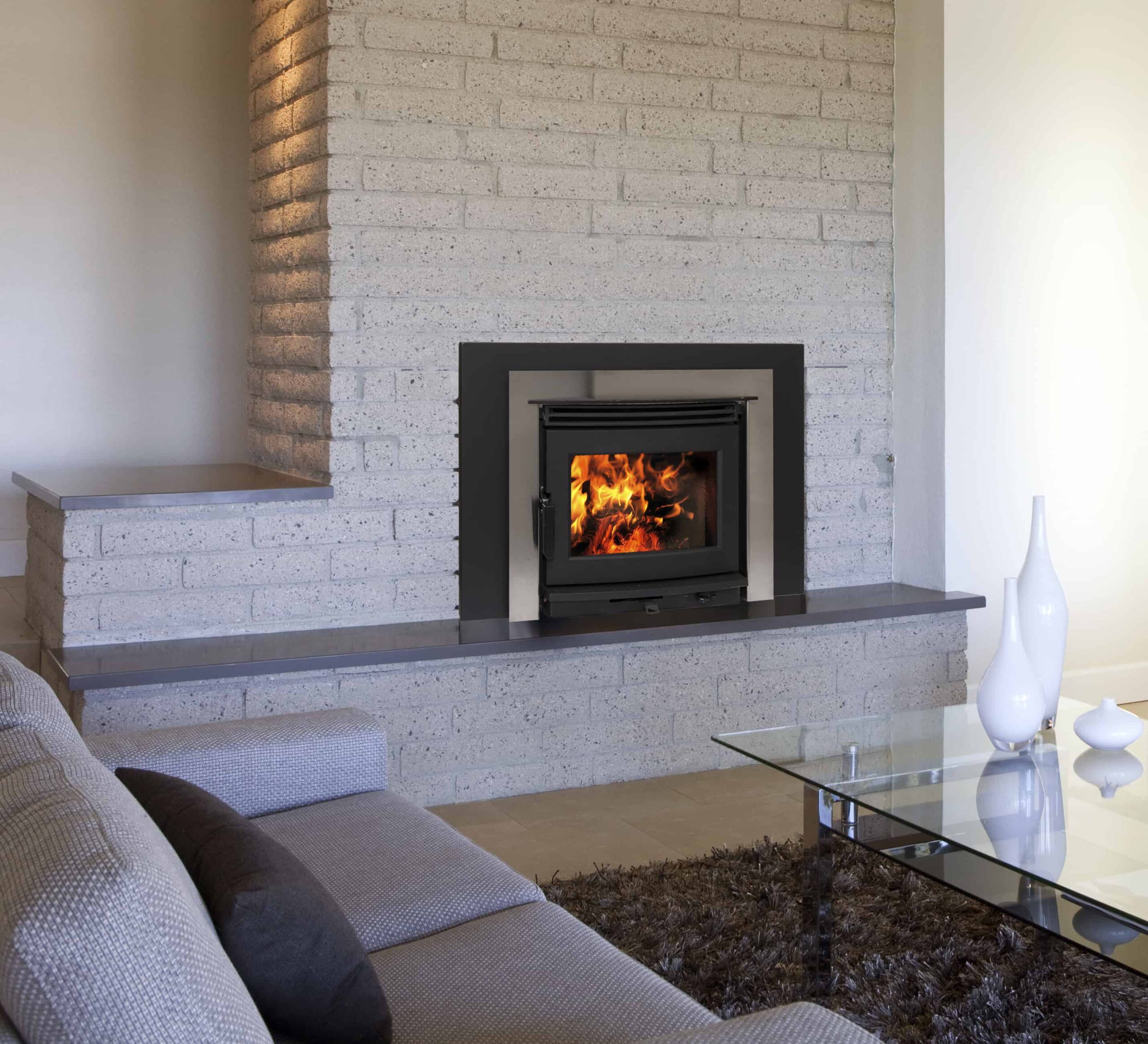

Pacific Energy Neo 1.6 Wood Fireplace Insert

The Pacific Energy Neo 1.6 wood insert is the perfect contemporary conversion for your existing, potentially outdated wood burning fireplace. An insert with a tightly sealing door amps up the efficiency of your wood burning fireplace, while the modern design of the Neo 1.6 provides an updated design. With 72,000 BTUs and a dual fan kit, you should have no problem heating most medium sized rooms with this insert. Customize for your home with either a Metallic Black or Stainless Steel trim plate and upgrade your fireplace without sacrificing those wood fires you love.

Loading...

Specifications

  • Heat Output Cord Wood (BTU): 72,000
  • Efficiency: 80.9 %
  • Emissions: 3.4 g/hr
  • Minimum Install Dimensions: 30″ W x 20″ H x 17″ D
  • Log Size: 16″-17″
  • Firebox Size: 1.6 ft³
  • Glass Size: 131 in²

Key Features

  • Catalytic-free technology increases the durability of your insert, without increasing maintenance requirements
  • Extended Burn Technology (EBT) automatically adjusts air flow in the firebox to increase burn times
  • Air wash system circulates air in front of the ceramic glass to keep it extra clean
  • Floating firebox technology allows for better expansion and contraction, extending the life of your insert
  • 304 Stainless Steel baffle, insulation cover, rails and flame shield
  • Two 45 cfm temperature activated, variable speed blowers come standard
  • East-West loading firebox can hold up to 17″ logs
  • Contemporary trim plate available in Metallic Black or Stainless Steel
  • Backing plate available in two sizes: Regular (36 x 25-7/8) or Oversized (46 x 29-7/8)

Downloads

Manual: Pacific Energy Neo 1.6 Insert Manual

Brochure: Pacific Energy Neo 1.6 Insert Spec Sheet

Warranty: Click Here!
