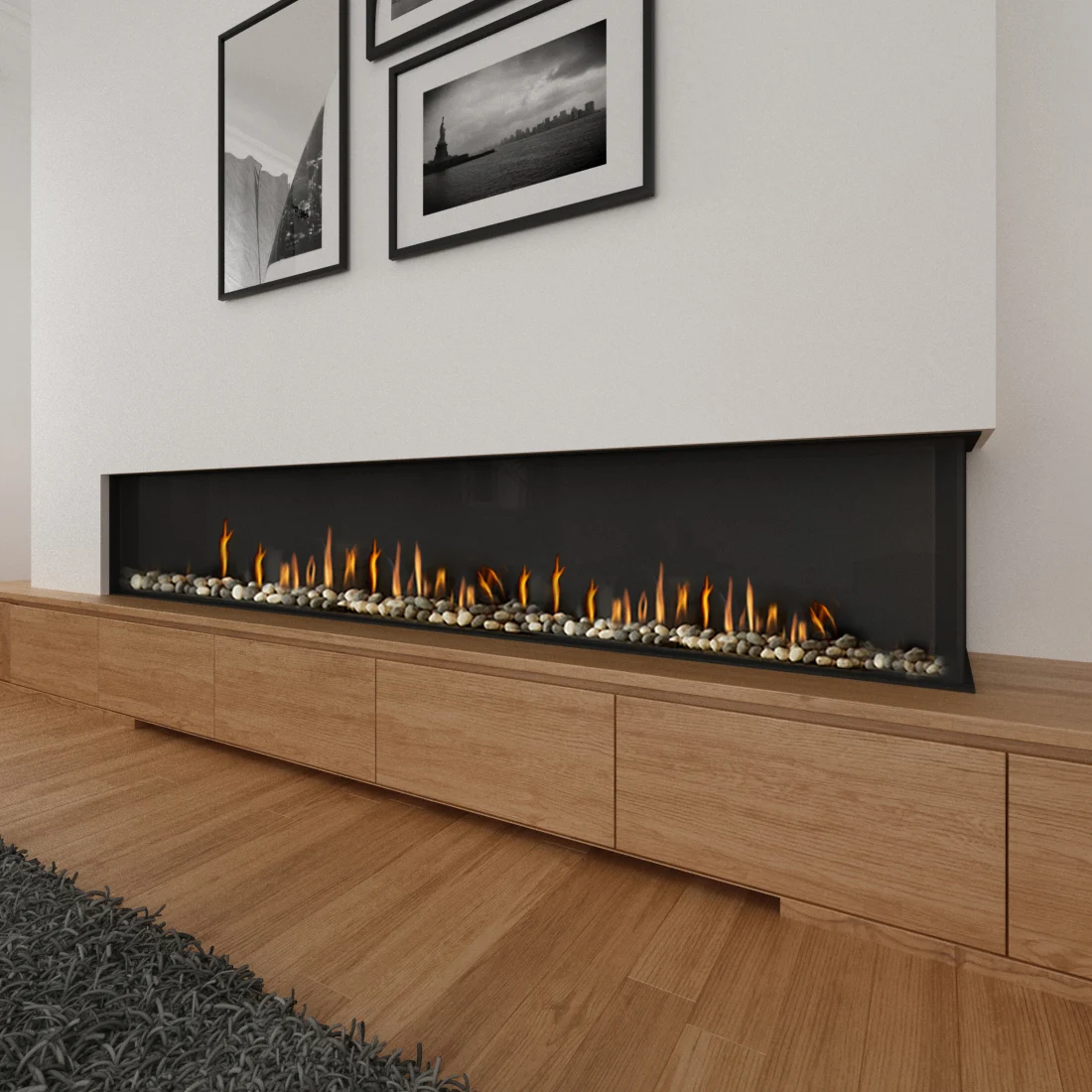

Ortal Corner 98 (250) LS/RS

Wide or narrow, cozy or imposing, Ortal’s left-side or right-side natural gas corner fireplace collection is ideal and flexible architectural solution that bring focus to any space. Enjoy the modern luxury of a direct vent fireplace equipped with Ortal’s revolutionary cooling technology, which keeps the surrounding temperature down while retaining the heat-producing properties of a traditional fireplace.

This field is hidden when viewing the form
This field is hidden when viewing the form
Name(Required)
Address

Specifications

  • Viewing Area: 98 1/2″ W X 15 3/4″ H
  • Weight Double Glass/Weight Screen: 521LBS/470LBS
  • Fuel Type:LPG, NG
  • LPG BTU Output/LPG Efficiency: 57,045/79.30%
  • NG BTU Output/NG Efficiency : 52,700/73.40%
  • Vent: 5X8 CO-AXIAL DIRECT VENT PIPE (5-INCH INTERIOR, 8-INCH EXTERIOR)
  • Heat Barrier: Double Glass, Micro Mesh Screen
  • Interiors: Standard Matte, Black Reflective Glass
  • Controls: REMOTE, WALL SWITCH

Advantages & Benefits

  • Passive Cool Wall Technology
  • Creative Interiors
  • Heat Barrier Solutions
  • Power Vent System
  • Lighting
  • Direct Vent
  • Efficiency
  • SmartHome
  • Heat Control System

Downloads

Manual:Ortal Installation Manual – Evolve 98 Series (V1.0)

Framing and Clearances:77H Corner Framing (1)

Double Glass Left Side:98 LS (DG)

Screen Drawing Left Side:98 LS (Screen)

Double Glass Right Side:98 RS (DG)

Screen Drawing Right Side:98 RS (Screen)

Product Brochure: Ortal Catalog – 2022 Full Line
