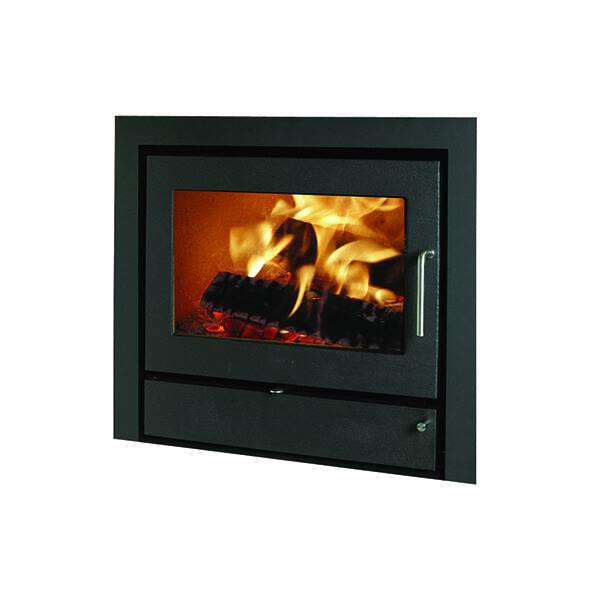

Morsø 5660 Blower

The 5660 Blower model insert comes with a super quiet 110 CFM dual squirrel cage fan that pulls cool air from under the insert and blows warm air out above the insert.

The Fan has a rheostat, so you can control the speed of the fan and it has a thermal sensor that will turn the fan on when the insert becomes hot and will turn itself off when the fire goes out.

Just set it and forget it.

Contact Us

Category: .

Product Description

features

  • Clean-burning air wash system
  • 10 year limited warranty
  • Gasketed seams for tight seals
  • Chromium treated internal castings for durability
  • Reversible flue collar
  • Non catalytic clean burn technology
  • Pre-heated combustion air
  • Pre-heated secondary air supply
  • Removable handle

fuel

  • Wood

colours

  • Black

approvals

  • EPA

Technical Details

Technical details

Maximum Heat BTU/hr)50,000
Test Fuel Load10.43 lbs
Particulate Emissions4.5 grm/hr
Log Size20″
Max. Area Heated2200 ft²
Firebox Dimensions20¾”W x 11″D
Firebox opening $ 28¾”W x 19¼”D x 26″H
Firebox volume/capacity1.49 ft³
Gross Weight383 lbs
Outside Air SupplyAvailable
Mobile Home ApprovedNo
Washington StateCompliant
Optional:
3-sided wide trim kit 40″Wx31¾”H
Blower kit

Clearances to combustibles

Basic Clearance using single wall pipe top vent
Stove to side wall17″
Stove to top26½”
Stove to side trim8″
Stove to mantle26½”

Guides & instructions

Diagrams, manuals & downloads

gx_morsoe_5660-malskitse-NA-ZC-96
